Model #: 8680211760041
Unit of Measure: EA
Quantity Per Unit: 1
Minimum order: 1
Order Increments: 1
Applying large grommets has just become easier! The specially designed CSBUR-1 offers a wide range of grommet size compatibility including size #12 (1.5" / 40mm inside dimension) grommets. Designed with an extra long lever and force transfer mechanism, this press generates high mechanical impact making it capable of installing large grommets. It is a reliable, heavy duty machine that doesn't rely on pneumatic or electrical power.
- Perfect for tarpaulin, tent, truck cover and drapery workshops.
- 1 1/2" (#12) Grommet compatible! Ability to apply large #12 grommets and washers.
- "On Cart" version available Wheel the press around your large project while it lies on the floor or table. No need to move the product, no need to lift the heavy press. Call for details.
Applicable Grommet Sizes:
#12, #8.5, #7.5 #5.5, #5, #4, #3 and smaller sizes

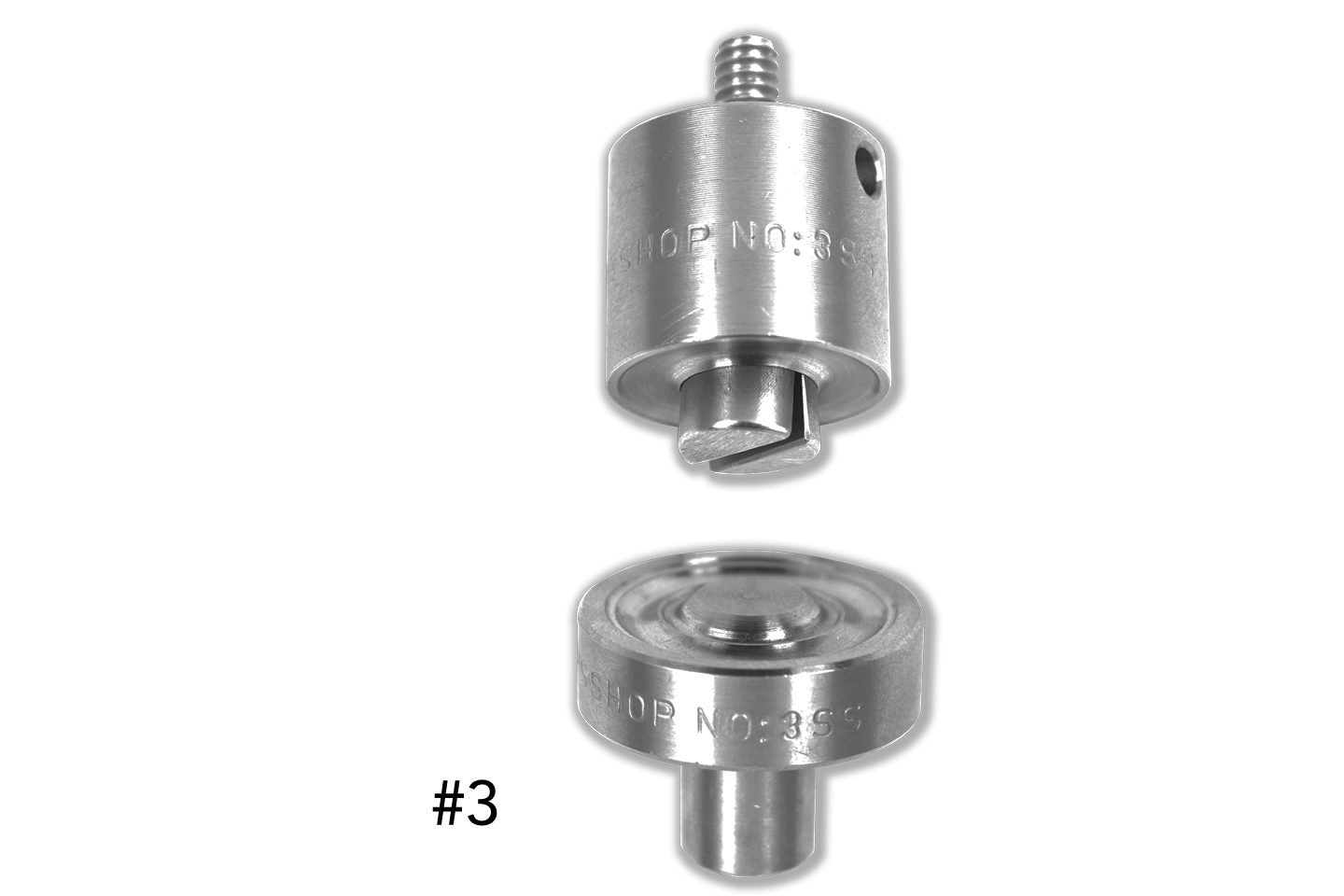

Note: Setting dies in the correct size(s) to match your grommets are needed to use the press. Self-piercing dies, 2-step dies, hole cutting dies and grommet attaching dies are available for metal grommets. Grommets size #XX00 - #5.5 are self-piercing. Curtain eyelets #7.5, #8.5 and #12 grommets are not self piercing. Hole cutting dies and two-step cutting setting dies are available.
Dimensions (H x W x D):
16.125" x 11.4375" x 7.5"
Warranty: One-year ClipsShop manufacturers warranty on manufacturing defects. This does not cover normal wear and tear or abuse.
Note: CSBUR-1 is a HAND PRESS. Grommets are set by the hand pressure applied by the operator. The operator controls the pressure applied. The consistency of the grommet application is dependent on the pressure applied by the operator.
If you are unsure of what you need please call us for help or send us material samples to test for you. Opened presses, dies and grommets are not returnable. Read the terms and conditions carefully to make sure you understand what you are buying.
